All-In-One PET Full Bottle Inspection Machine
The development of modern technology has made the production process more efficient, precise and controllable. As an integrated inspection system designed for PET production lines, the Promita-P One can provide companies with online inspection of full bottles after filling and rejection of defective products on production lines for beverages and purified water, etc. It can accurately and reliably inspect product levels, caps, tamper ring, code, etc. to ensure that the quality of products produced meets standards. It can accurately and reliably inspect the level, cap, tamper ring, code and other qualities of the product to ensure that the quality of the product produced meets the standards. This advanced technology can not only improve the production efficiency of enterprises, but also provide consumers with safer and higher quality products.
|
Scope of application:
|

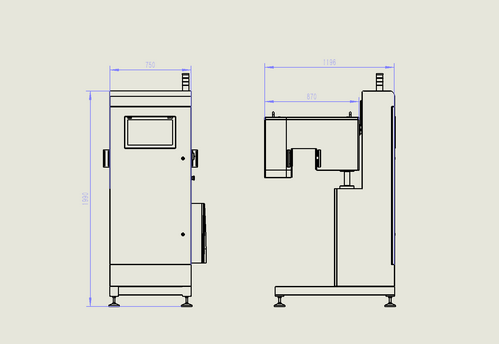

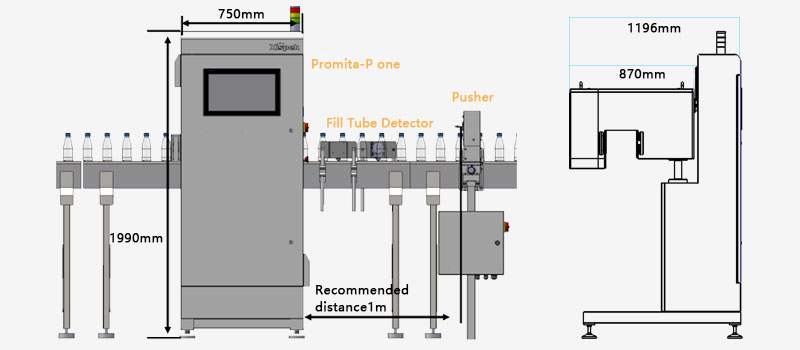

Installation position:
|

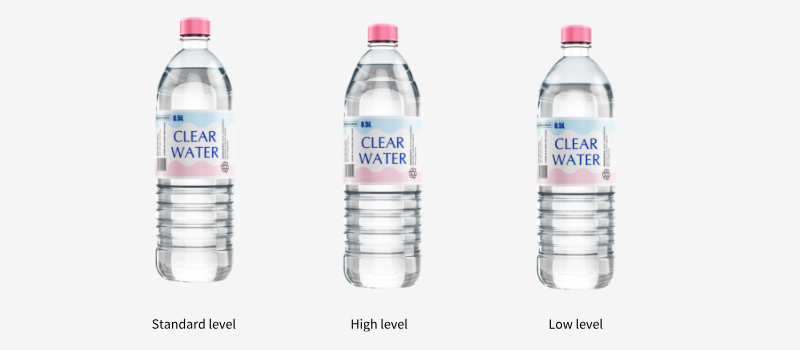

Fill level inspection

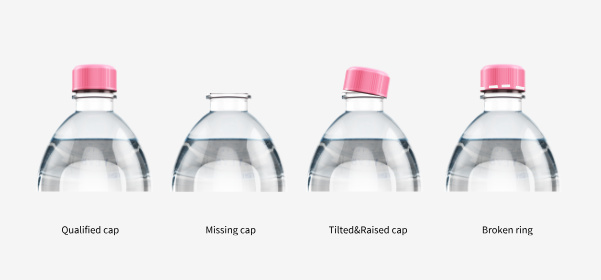

cap inspection
360° degree tamper ring inspection

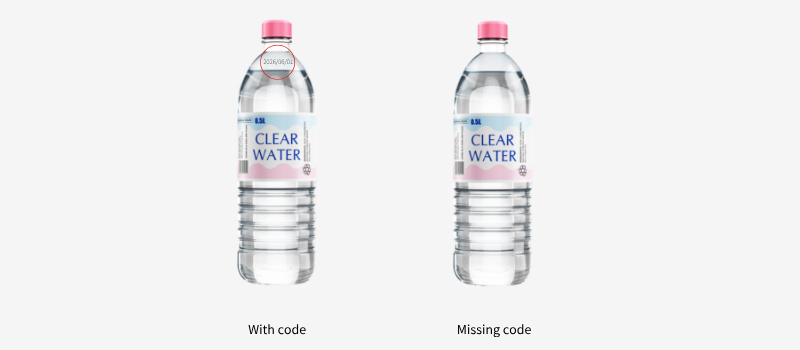

Code inspection

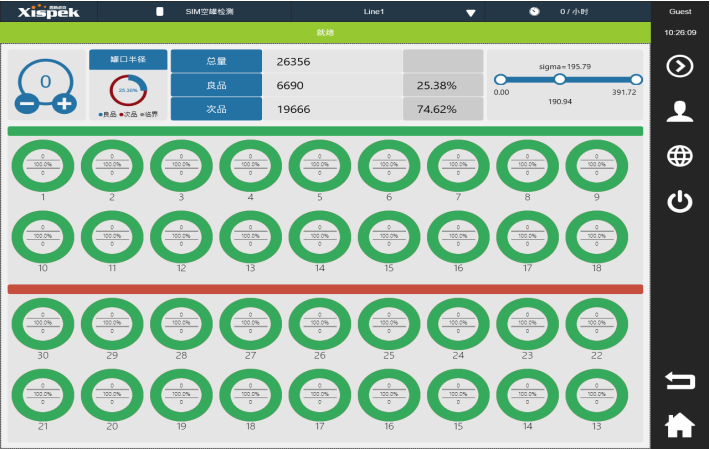

Filling Management System

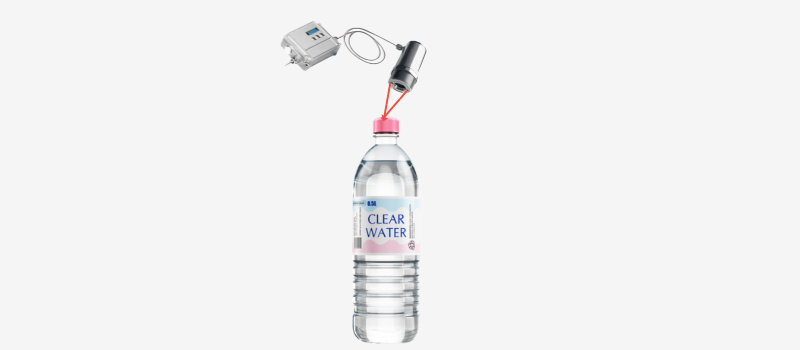

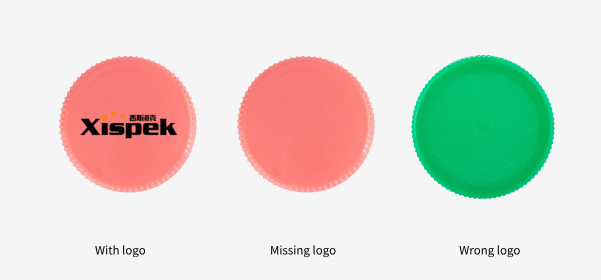

Cover top logo inspection
|
|
|
|
Level |
Broken ring |
Missing insurance rings |
|
 |
 |
|
Wrong cap |

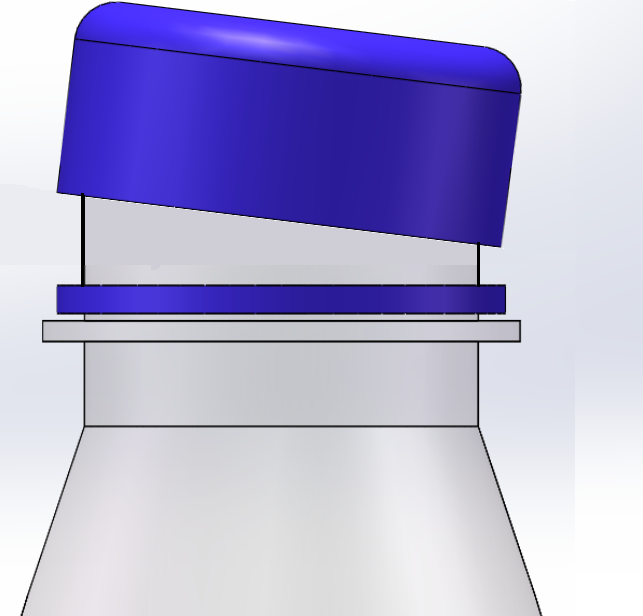

High/Slant cap |

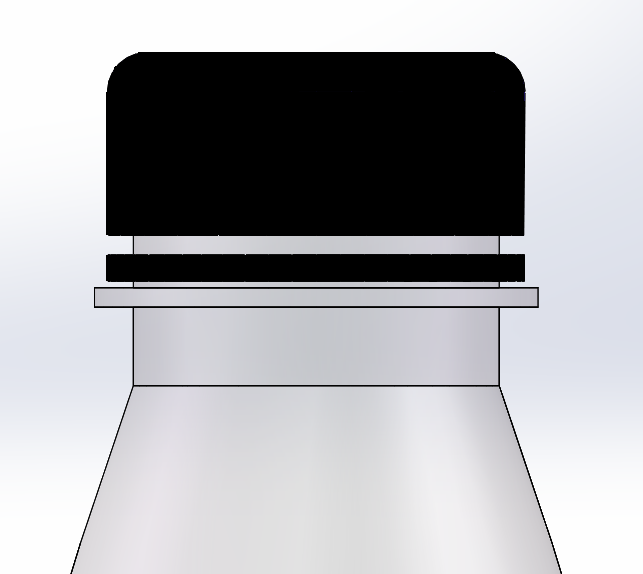

Tamper ring black |
Xispek Promita-P One is an all-in-one full bottle inspection system designed for the needs of PET production lines. It features fully motorized height adjustment and easy one-button changeover. It provides efficient 360° inspection of fill level, cap and tamper ring. Using highly efficient image processing algorithms that accurately reproduce the entire image to ensure that each container is inspected accurately, the Promita-P One is available with different integrated control centers depending on the actual line speed, and can achieve inspection speeds of up to 90,000 bottles/hour.
Adopts XispVision® universal inspection software platform
High inspection efficiency and accuracy
Compact design for easy integration
Inspection module with IP65 protection level
Motorized lifting system, one button to changeover
Use one industrial camera
Maintenance-free and long-life infrared LED light source with stronger penetration and higher contrast imaging

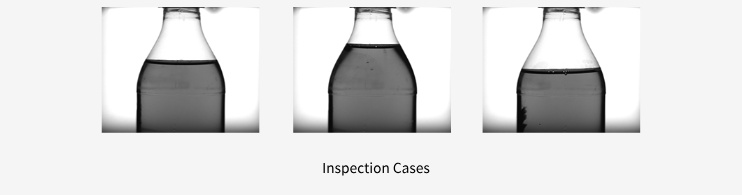

Simultaneously detect high and low fill level
X-ray optional

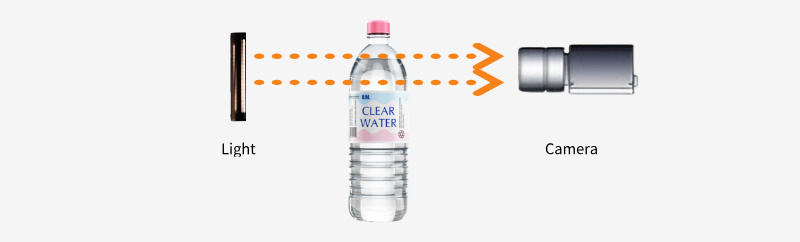

Use industrial camera
Maintenance-free and long-life white LED light source
Backlit way, high contrast imaging
Simultaneously detect: no cap, no tamer ring, high cap, slant cap

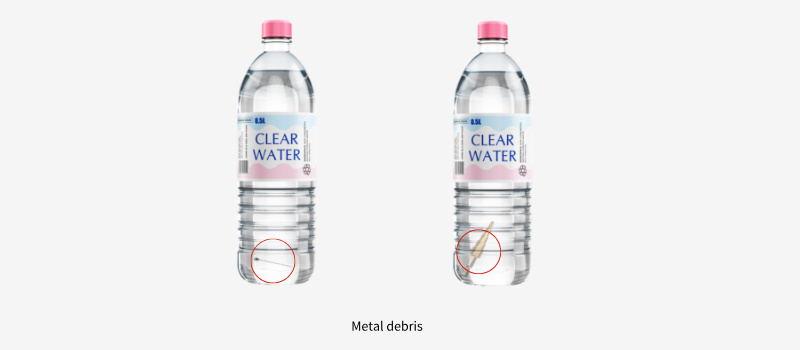

Highly sensitive metal detectors installed on both sides of the conveyor
Sensors with IP67 protection
Using the fill level inspection or high/slant cap inspection data, to inspect the code
Temperature sensors optional

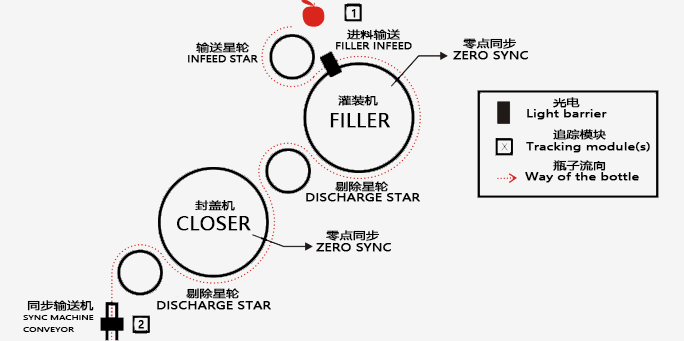

TrackML® Patented Tracking Technology
Object-oriented ID tracking
Stabilized real-time tracking
Multi-module tracking and delivery
Individual statistical summary for each filling nozzle(capping nozzle)
Analyzing equipment problem diagnosis
Sampling function
Subdivision of statistics by machine position
Graphic report function

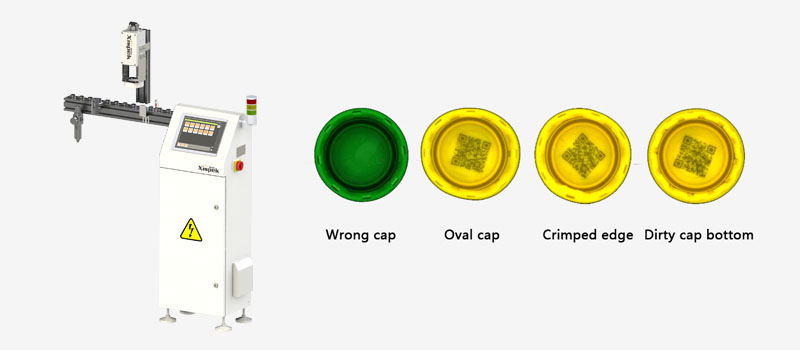

Use one color industrial camera
Maintenance-free, long-life ring LED light source
Inspection wrong cap by color and pattern

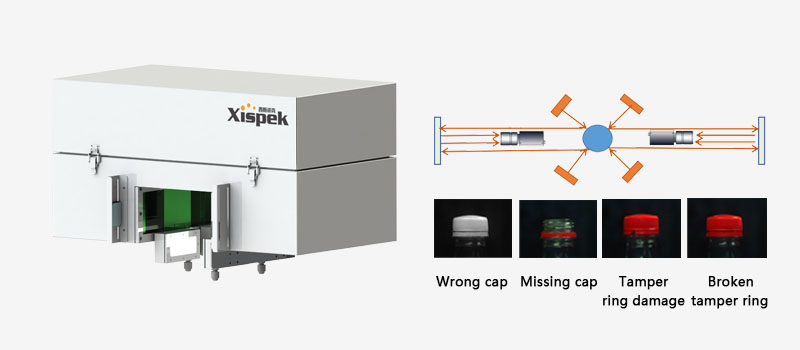

Use two color industrial camera
Maintenance-free and long-life LED surface light source
Compact design through specular reflection
Four sides of the cap are photographed to realize a 360 panoramic image
Intelligent recognition algorithm, able to realize 0.7mm broken tamper ring
