Modular Full PET Bottle Inspection
The individual requirements of the production line demand more and more flexibility from the inspection system. Modular Full Bottle Inspection Promita-P Mod is an inspection system designed precisely to meet the individual requirements of PET filling lines. Users can freely choose to customize the functions and hardware modules according to their functional needs. It provides companies with online inspection of full bottles after filling and rejection of defective products on PET bottle filling lines. It can accurately and reliably detect the quality of the product level, cap, safety ring, spray code, etc. to ensure that the quality of the products produced meets the standards. This modular system also allows for better scalability in the future.
Scope of application:
|
Installation position:
|
Fill level inspection
Cap inspection
360° degree tamper ring inspection

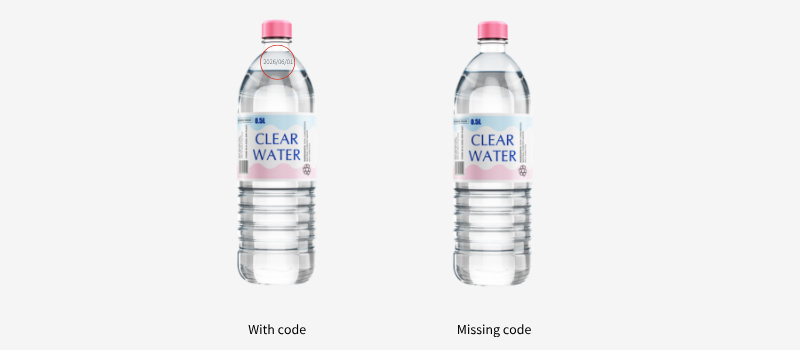

Code inspection
Filling Management System

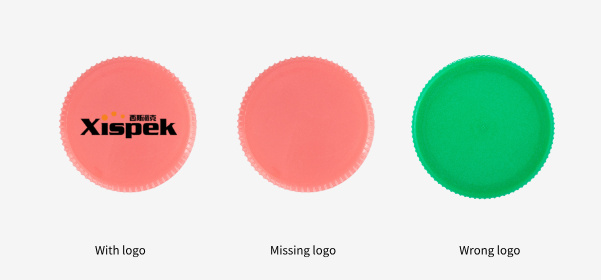

Cover top logo inspection
![]() |
![]() |
![]() |
Level |

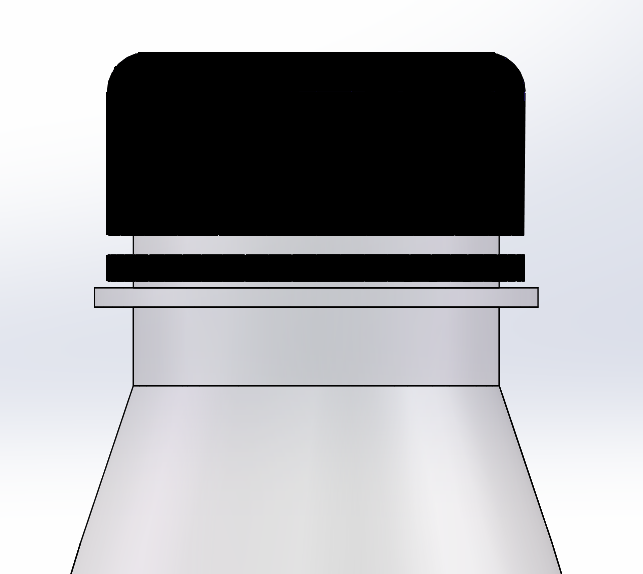

Tamper ring |
Missing insurance ring |
![]() |
![]() |
![]() |
Wrong cap |

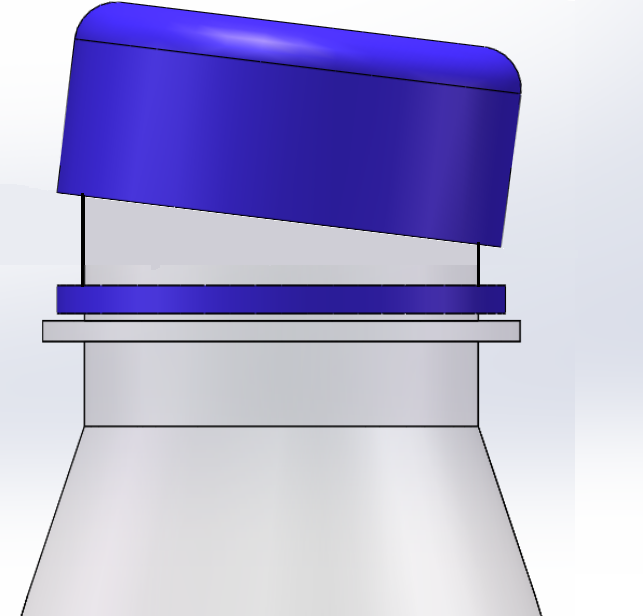

High/Slant cap
|
Tamper ring black |

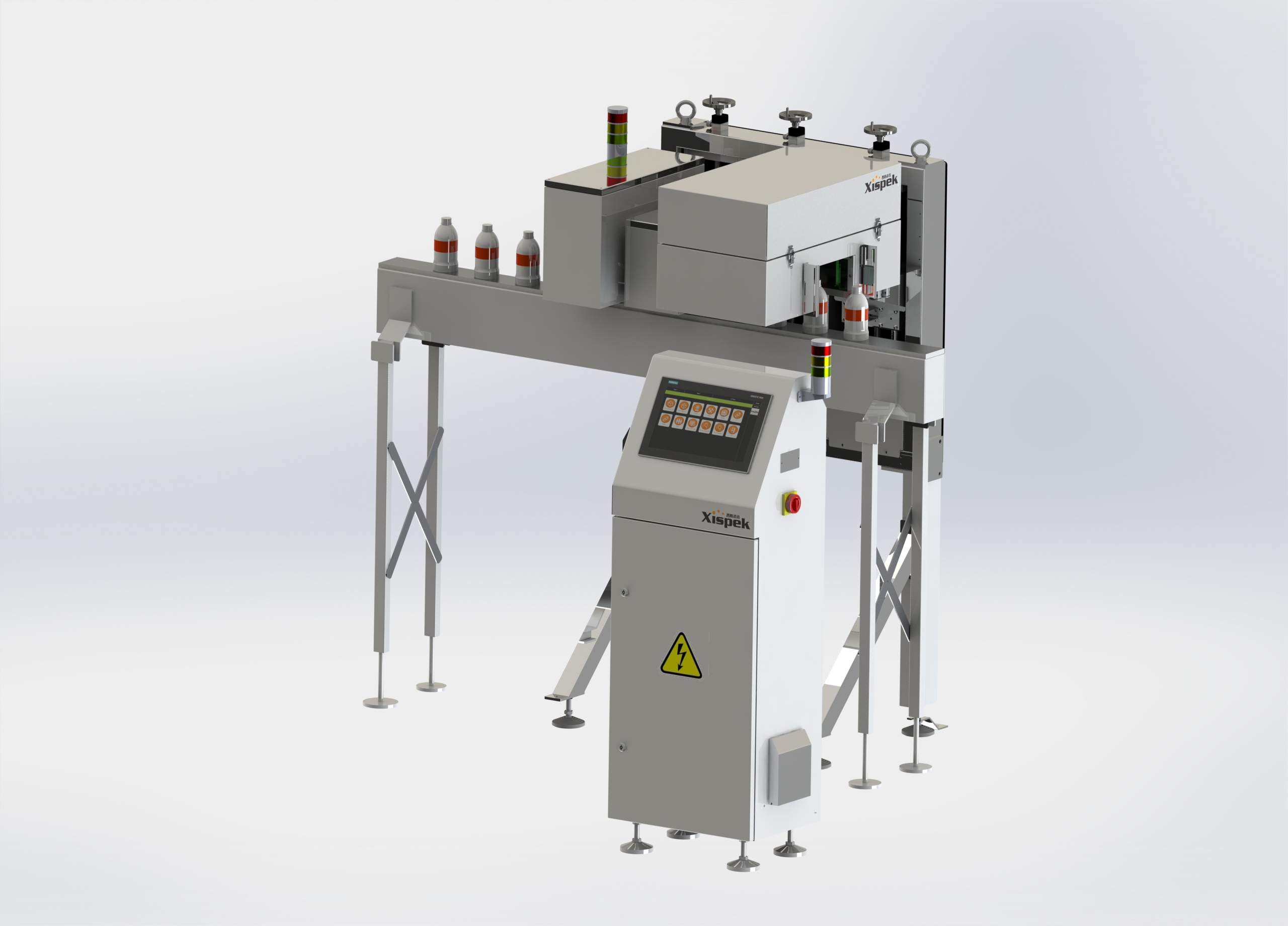

The Xispek Promita-P Mod is a modular full bottle inspection system designed to meet the needs of PET production lines. The Promita-P Mod is a modular system designed for PET production lines with the ability to customize the functions and hardware modules for efficient 360° inspection of the fill level, cap height and cap safety ring. the Promita-P Mod is independent of the control center and the inspection modules, and the modules of interest can be connected to the standard control center. Depending on the speed of the production line, any of the standard control centers can be used. Whether it is the smallest XispC500 control center, the medium-speed XispC1000 or the most efficient XispC2000, the inspection system is based on the same XispVision® universal inspection software platform. Thanks to the efficient image processing algorithms of XispVision®, the Promita full bottle inspection system is able to accurately reproduce the entire image, ensuring that every container can be accurately inspected, and the Promita-P Mod is capable of achieving inspection speeds of up to 90,000 bottles/hour.
Adopts XispVision® universal inspection software platform
High inspection efficiency and accuracy
Compact design for easy integration
Inspection module with IP65 protection level
Motorized lifting system, one button to changeover

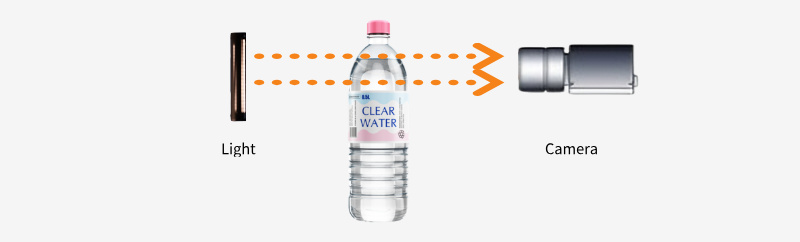

Use one industrial camera
Maintenance-free and long-life infrared LED light source with stronger penetration and higher contrast imaging

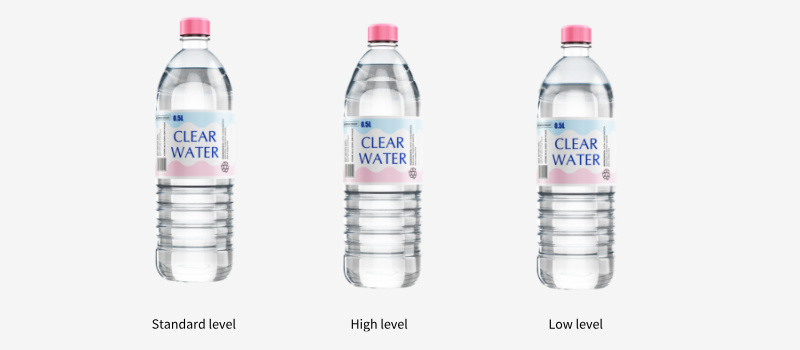

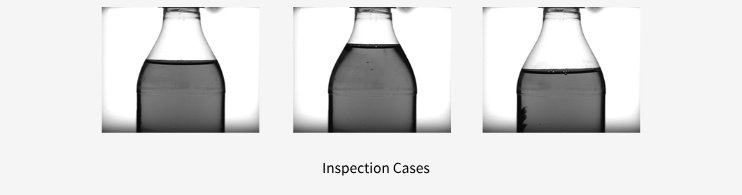

Simultaneously detect high and low fill level

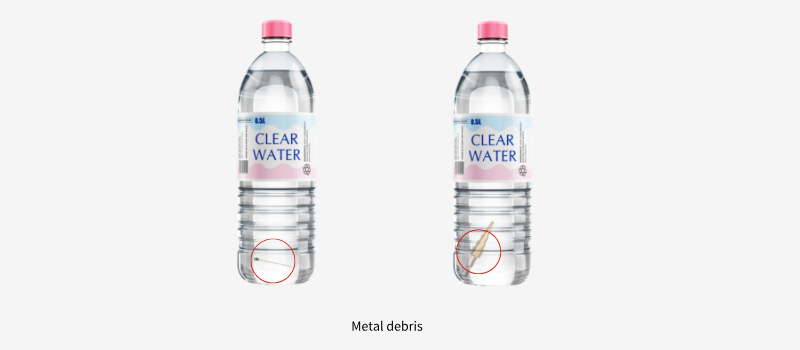

X-ray optional
Use industrial camera
Maintenance-free and long-life white LED light source
Backlit way, high contrast imaging

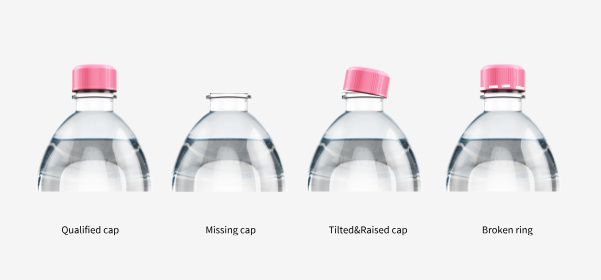

Simultaneously detect: no cap, no tamer ring, high cap, slant cap
Use two color industrial camera
Maintenance-free and long-life LED surface light source
Compact design through specular reflection

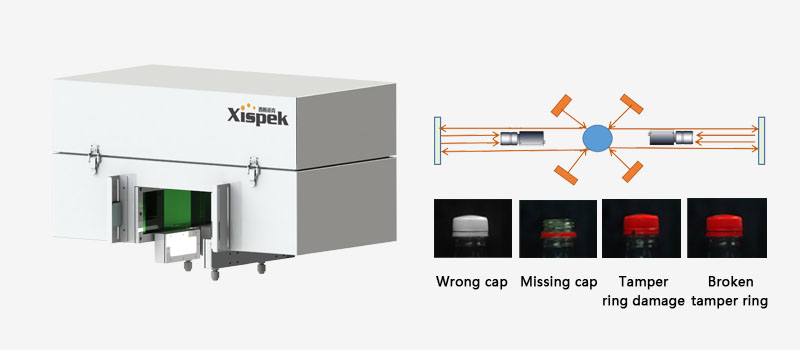

Four sides of the cap are photographed to realize a 360 panoramic image
Intelligent recognition algorithm, able to realize 0.7mm broken tamper ring
Using the fill level inspection or high/slant cap inspection data, to inspect the code

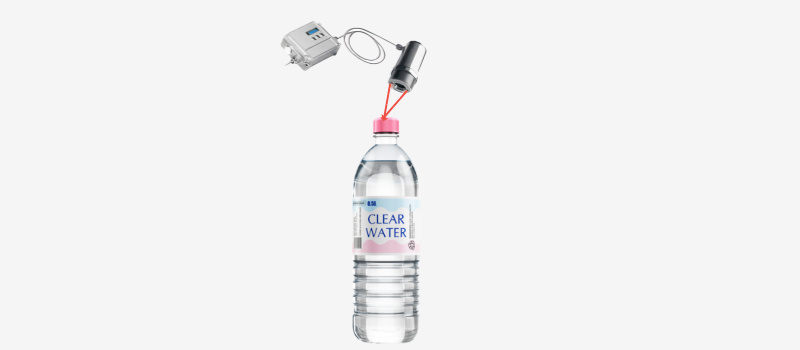

Temperature sensors optional

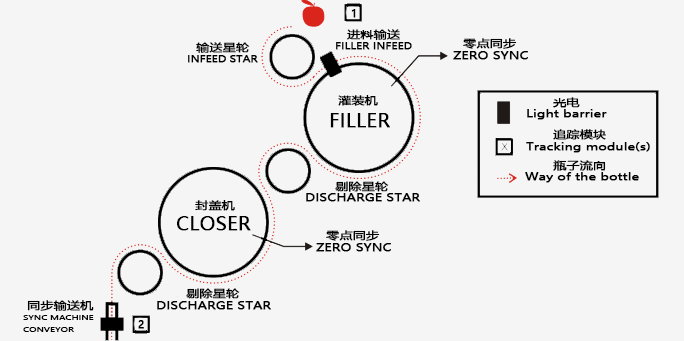

TrackML® Patented Tracking Technology
Object-oriented ID tracking
Stabilized real-time tracking
Multi-module tracking and delivery

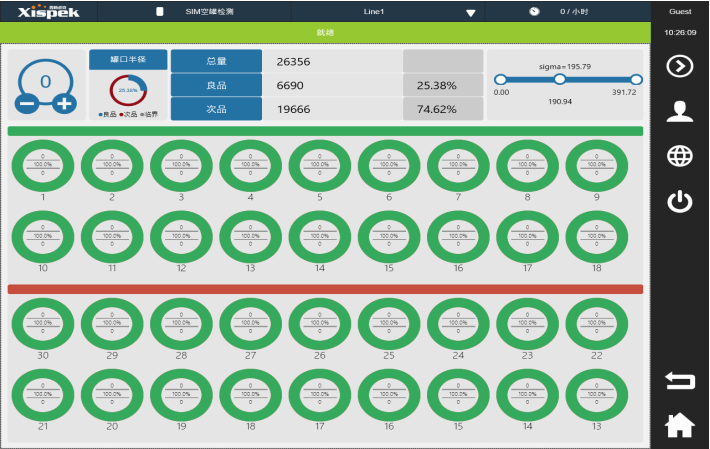

Individual statistical summary for each filling nozzle(capping nozzle)
Analyzing equipment problem diagnosis
Sampling function
Subdivision of statistics by machine position
Graphic report function

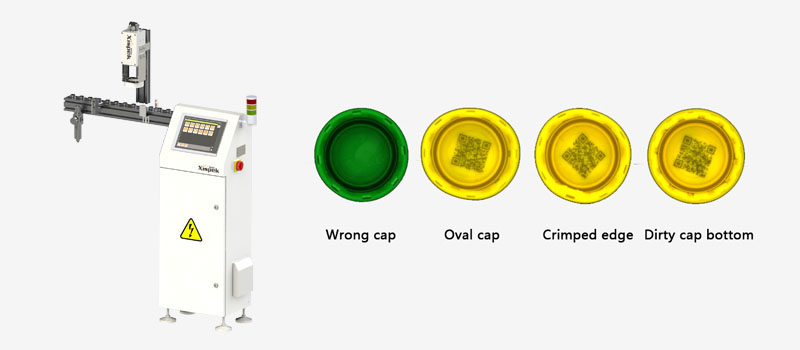

Use one color industrial camera
Maintenance-free, long-life ring LED light source
Inspection wrong cap by color and pattern
