Single Cap Inspection Module SCI utilizes a high quality industrial camera in conjunction with a maintenance free LED light source to detect no cap, high cap, and slant cap after filling machine.
Scope of application:
|
Installation position:
|

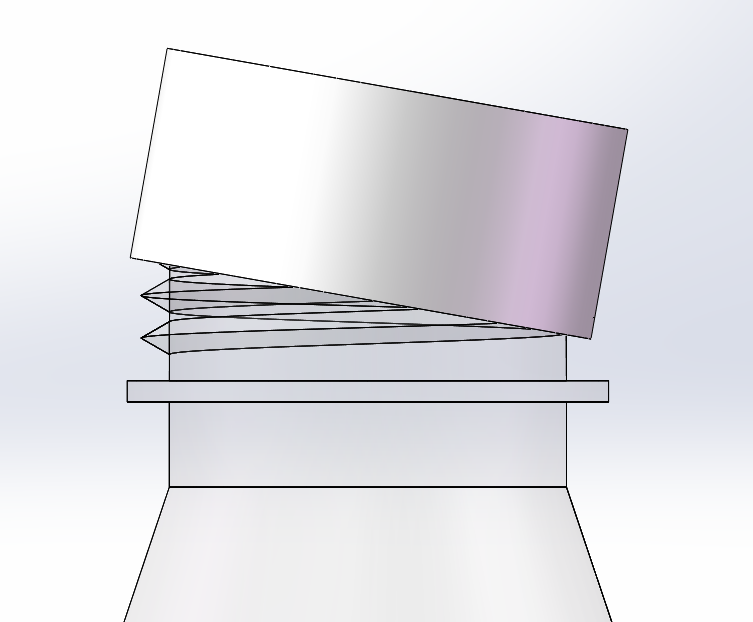

Slant cap
![]() |
![]() |
![]() |

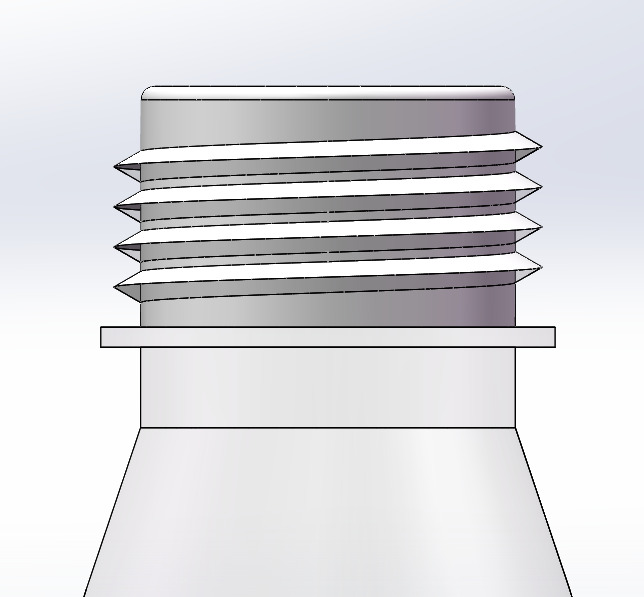

No cap |

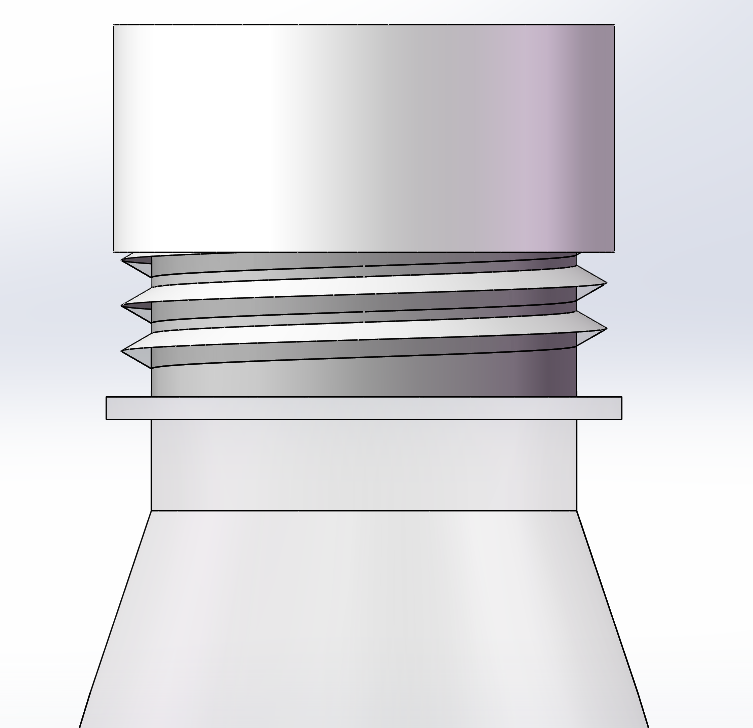

High cap |
Slant cap |
Single cap inspection module SCI adopts backlighting method. The optical path design is delicate, the imaging is clear, the inspection accuracy is high for high cap and slant cap. Overall design of the inspection module is compact, occupying small installation space.
Single cap inspection module SCI is an important part of the full bottle inspection after filling. Customers can combine other inspection modules (fill level inspection module, four-side tamper ring inspection module, cover top logo inspection module, code inspection module, etc.) according to actual needs, as well as the optional functions of the filling management system FMS, to make up a complete full bottle inspection system, and according to the speed of the production line can be equipped with different control center.
Adpots XispVision® universal inspection software platform
Precise rejection with controlled intensity

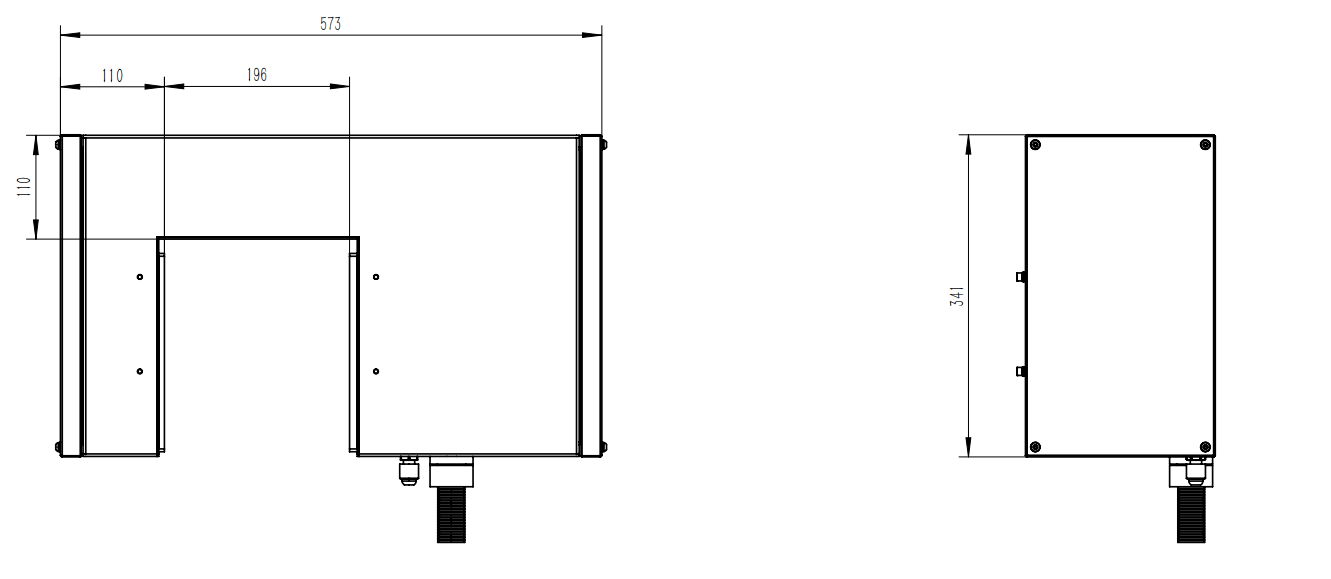

Compact design for easy integration
IP65 protection level
Modular design for flexible applications, can be used singly or in combination
