Beer Bottle Magnetoacoustic Leakage inspection EchoMeter achieves leakage inspection by actively exciting the cap of a beer bottle with electromagnetic field pulses and utilizing the principle of vibration waveforms captured by a high-precision acoustic sensor.
|
Scope of application:
|
Installation position:
|
Missing cap
Leakage inspection
|
|
|
| Leakage | Deformation | Missing cap |

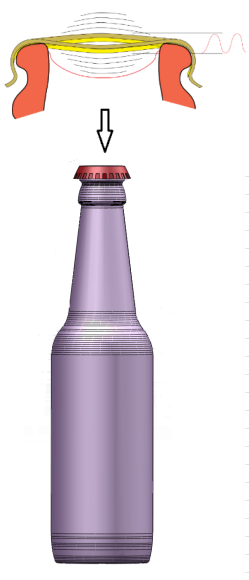

The EchoMeter working process is accomplished by the following steps:
1. An electromagnetic coil passes a strong electric current in a very short period of time.
2. The coil creates an electromagnetic pulse that "hits" the bottle cap.
3. The cap vibrates under the electromagnetic pulse and makes a sound.
4. Acquisition of waveforms by acoustic sensors
5. Analyze the waveform through the inspection software to determine the leakage of the bottle.
Non-contact measurement
Optimized sensor design to reduce the impact of bottle height errors on detection
Inspection module IP65 protection level for various environment
