Empty Bottle Inspection

Empty Bottle Inspection Module is installed inside the PET production line's blow molding machine, inspecting for:Bottle mouth defects、Bottle mouth dimensions、Bottle mouth roundness、Bottle base defects、Bottle base contamination、Bottle base eccentricity.

System Introduction

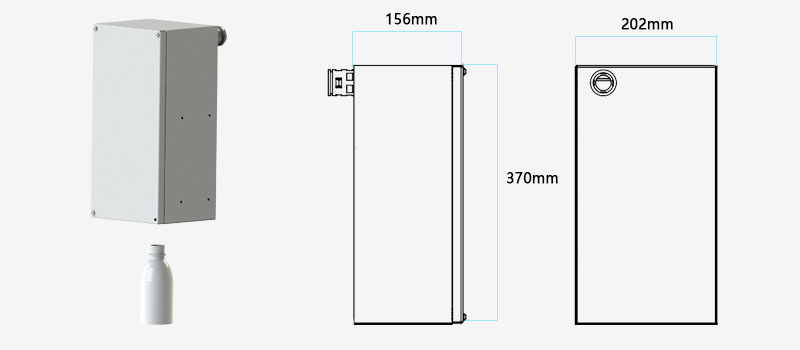

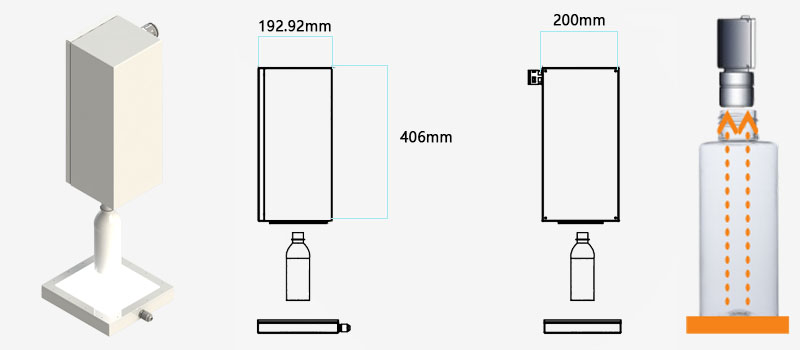

Installed on the transfer star wheel behind the blow molding machine, the empty bottle inspection system features a compact modular design that allows it to be fitted to blow molding machines of various specifications and sizes. Composed of bottle neck and bottle base inspection modules, it inspects the bottle neck and base after blow molding. Different control centers can be selected according to varying production line speeds, achieving a maximum inspection speed of 72,000 bottles per hour.

Inspection Items

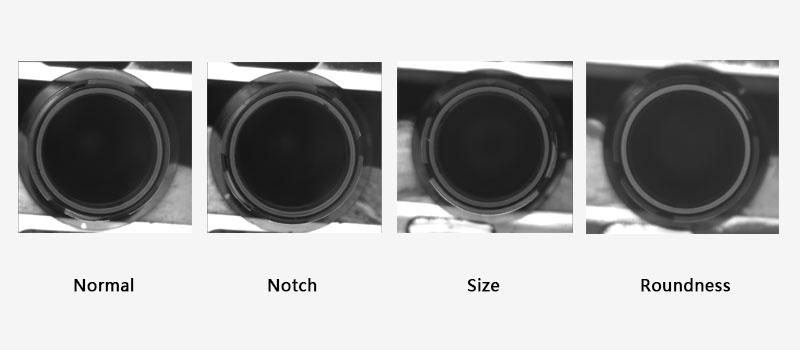

Bottle mouth defects: Cracks, Scratches, Roundness deviation

Bottle body defects: Holes, Black spots, Air bubbles

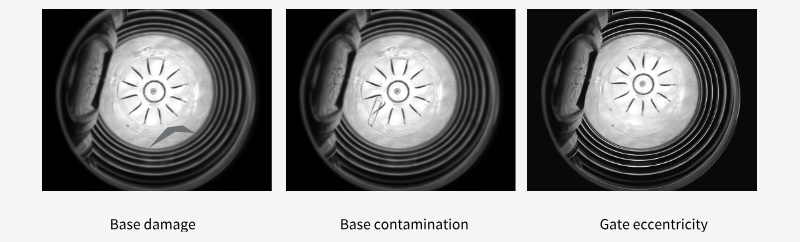

Bottle base defects: Material loss/damage, Contamination, Eccentric blow-molding point

Strengths

Compact design for easy integration into blow molding machines

Inspection module features IP65 protection rating, suitable for harsh environments

Customers can flexibly select and install the system according to actual requirements. It can also be combined with other functional modules (e.g., preform inspection) to meet multi‑functional inspection needs.
